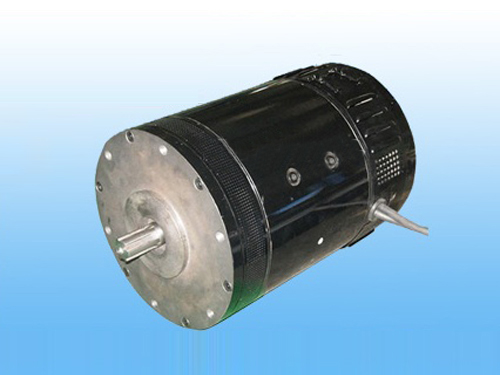

300串励叉车电机
2010-06-25
结构特点： 6齿外花键，圆法兰，电机直径：300mm
型号 | 额定功率 | 额定电压 | 额定电流 | 额定转速 | 工作制 | 励磁 | 绝缘 | 防护 |
ZC10F-75C1 | 10 | 75 | 167 | 1200 | 60min | 串励 | F | IP20 |
ZC10F-84C1 | 10 | 84 | 149 | 1200 | 60min | 串励 | F | IP20 |
ZC12F-84C1 | 12 | 84 | 178 | 1200 | 60min | 串励 | F | IP20 |
ZC10F-96C1 | 10 | 96 | 130 | 1500 | 60min | 串励 | F | IP20 |
ZC15F-96C1 | 15 | 96 | 195 | 1500 | 60min | 串励 | F | IP20 |
ZC17F-108C1 | 17 | 108 | 197 | 1500 | 60min | 串励 | F | IP20 |
ZC17F-120C1 | 17 | 120 | 177 | 1800 | 60min | 串励 | F | IP20 |
ZC17F-144C1 | 17 | 144 | 147 | 1800 | 60min | 串励 | F | IP20 |
ZC20F-144C1 | 20 | 144 | 174 | 1800 | 60min | 串励 | F | IP20 |
ZT10F-75C1 | 10 | 75 | 167 | 1000 | 60min | 他励 | F | IP20 |
ZT10F-84C1 | 10 | 84 | 149 | 1200 | 60min | 他励 | F | IP20 |
ZT12F-84C1 | 12 | 84 | 178 | 1200 | 60min | 他励 | F | IP20 |
ZT10F-96C1 | 10 | 96 | 130 | 1500 | 60min | 他励 | F | IP20 |
ZT15F-96C1 | 15 | 96 | 195 | 1500 | 60min | 他励 | F | IP20 |
ZT17F-108C1 | 17 | 108 | 197 | 1500 | 60min | 他励 | F | IP20 |
ZT17F-120C1 | 17 | 120 | 177 | 1500 | 60min | 他励 | F | IP20 |
ZT17-144C1 | 17 | 144 | 147 | 1800 | 60min | 他励 | F | IP20 |
ZT20-144C1 | 20 | 144 | 174 | 1800 | 60min | 他励 | F | IP20 |
